Interpretation

According to theory the angular scattering probability is given by

$\begin{displaymath} p(\theta) \propto4\sin^2 \eta_0 +25\sin^2\eta_2(3\cos^2\thet... ...a_0-\eta_2)(3\cos^2\theta-1)}_{\rm s+d interference term}, \end{displaymath}$

(1)

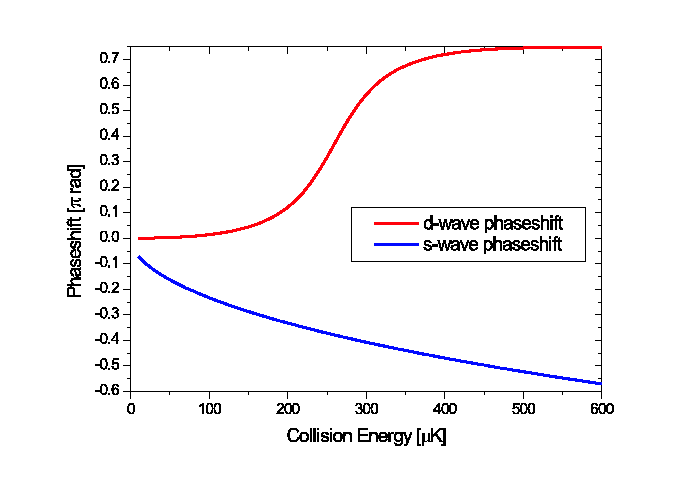

where $\eta_0$ and $\eta_2$ are the energy dependent s and d partial-wave phase shifts, respectively. A so-called coupled channels calculation gives the following values for $\eta_0$ and $\eta_2$ as function of the collision energy.

$\includegraphics[width=1.25\columnwidth, clip]{C:/webpage/figs/phaseshifts.eps}$

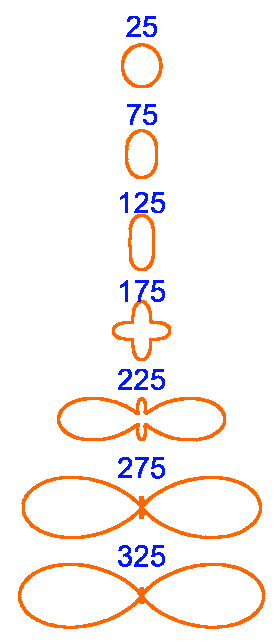

From these phase shifts we compute the following angular scattering probabilities (using Eq. (1))

$\includegraphics[width=0.5\columnwidth, clip]{C:/webpage/figs/development2.eps}$

These polar plots are in nice correspondence with our experimental observations 4.2.
