Scattering patterns

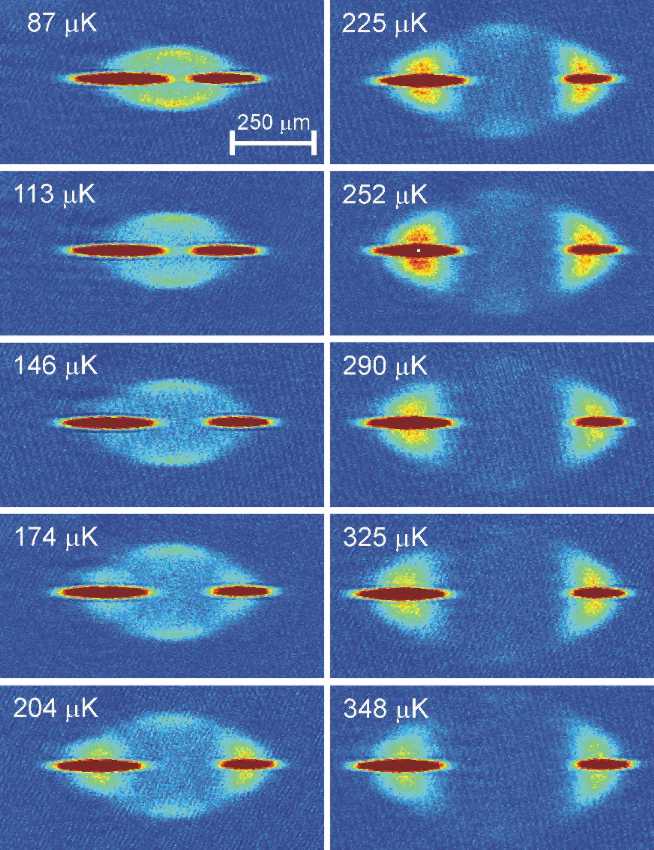

Below we show absorption images acquired at a fixed time after collision (a quarter of a radial trap period), but at different collision energies. It is obvious that there is a dramatic change in the patterns particles are scattered in. This is the result of quantum interference between exactly two so-called partial waves (an s-wave and a d-wave).

Click here to see a movie of the cold collision of two ultracold atomic Rubidium clouds at an energy where there is major d-wave contribution to the scattering pattern.

---

Subsections

• Getting the angular dependency of scattering
• Polar plots of the angular scattering probability
• Interpretation
  • Partial wave expansion
  • Partial waves for


• Scattering Yield

---
