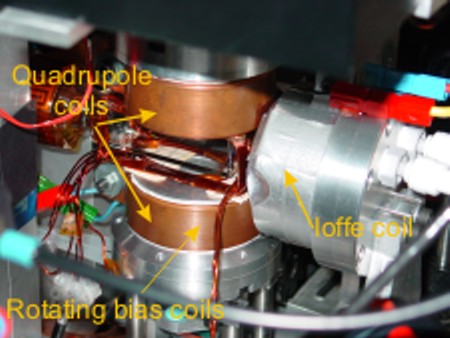

This photo shows the trap installed in the experiment.
For scale, the quadrupoles are 80 mm in diameter. The coils are driven at up to 27 Amps and are water cooled. The vacuum system, which is at a pressure of less than torr, extends from the left of the image between the two quadrupole coils.
